  • LP-XXXFZ Linear Position Sensor Sealed Construction Waterproof
  • Proven quality and reliability - Superb accuracy and repeatability
  • Sturdy aluminum housing - Designed for outdoor application
  • Stroke lengths and resistance values available :
  • (Stroke =i distance the shaft moves in and out)
  • LP-50FZ=50 mm stroke: 1K,2K,5K, ohms - Linearity: +/-0.5%- 1.5 watts
  • LP-100FZ=100 mm stroke: 1K,2K,5K,10K ohms - Linearity: +/-0.3%- 2.5 watts
  • LP-150FZ=150 mm stroke: 1K,2K,5K,10K ohms - Linearity: +/-0.3%- 3 watts
  • LP-200FZ=200 mm stroke: 1K,2K,5K,10K ohms - Linearity: +/-0.3%- 4 watts
  • LP-250FZ=250 mm stroke: 2K,5K,10K ohms - Linearity:+/-0.3%- 4 watts
  • LP-300FZ=300 mm stroke: ,2K,5K,10K ohms - Linearity:+/-0.3%- 4 watts
  • LP-400FZ=400 mm stroke: 5K,10K ohms - Linearity: +/-0.1%- 4.5 watts
  • Total Resistance tolerance +/-20% - Essentially Infinite Resolution
  • Too many choices? Through our experience we have designed pots used in aircraft landing gear,
  • wire winding machines and jet engine test stands. We can help you make an informed potentiometer decision
LP-FZ potentiometer

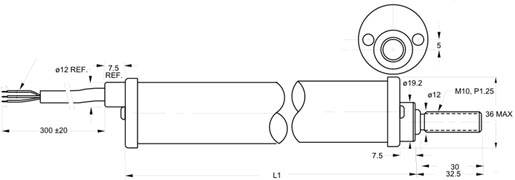

lp-fz potentiometer drawing
