Too many choices? Through our experience we can help you make an informed potentiometer decision. Call toll free 800-523-3561, 610-359-1002, fax 610-353-1674 or email fast quotes.
M2028-12-103 Linear Potentiometer - Anodized Aluminum Housing - 1/4" Stainless Steel Shaft.
Heavy duty & Cost effective- This model is repairable.
- Supplied with MS connector
- Shaft Style :(Diameter .25" diameter)
- Spherical Ball ends
- Mechanical Specs
- Gold Plated Terminals - Precious Metal Contacts
- Anodized Aluminum Housing - Stainless Steel Shaft
- Power rating : 0.5 watt per inch

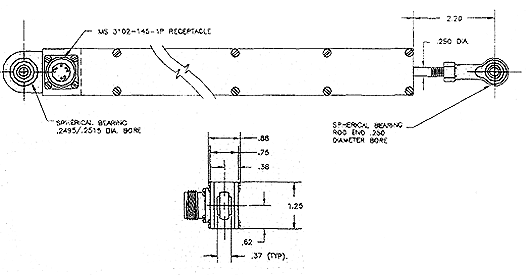

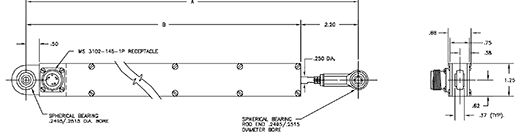

- M2028 Potentiometer Drawing pdf
- Stroke lengths & resistance values available :
- 1" stroke:,1K,2K,5K,10K, 20K, 50K, 100K ohms
- 2" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 3" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 4" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 5" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 6" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 7" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 8" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 9" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 10" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 11" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 12" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 13" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 14" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
- 15" stroke: 1K,2K,5K,10K, 20K, 50K, 100K ohms
