Conductive plastic element potentiometers offer essentially infinite resolution and longer life than wirewound element potentiometers Too many choices? Through our experience we can help you make an informed decision. Call toll free 800-523-3561, 610-359-1002, fax 610-353-1674 or email fast quotes.
P1991-12-103 Linear Potentiometer - Rugged for Harsh Environments. Long life raised molded track element.
Heavy duty & cost effective- This unit is repairable.
Available with Dual Element for dual tracking.
- Supplied with MS connector
- Shaft Style :(Diameter .25" diameter)
- Spherical Ball ends
- Mechanical Specs
- Gold Plated Terminals - Precious Metal Contacts
- Anodized Aluminum Housing - Stainless Steel Shaft
- Essentially Infinite Resolution
- Power rating : 0.5 watt per inch

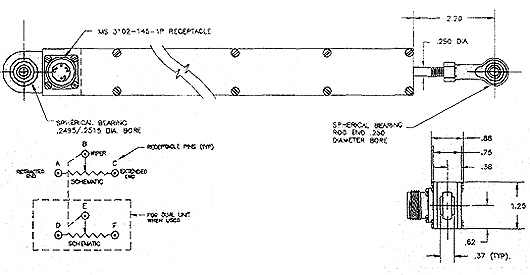

- P1991 Potentiometer Drawing pdf
- Stroke lengths & resistance values available :
- 1" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-2%
- 2" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-1%
- 3" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.7%
- 4" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 5" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 6" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 7" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 8" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 9" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 10" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 11" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 12" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 13" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 14" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
- 15" stroke: 500,1K,2K,5K,10K, 20K, 50K, 100K ohms -Lin.:+/-0.5%
